Prismal Module 50

Category

Module

Datasheet

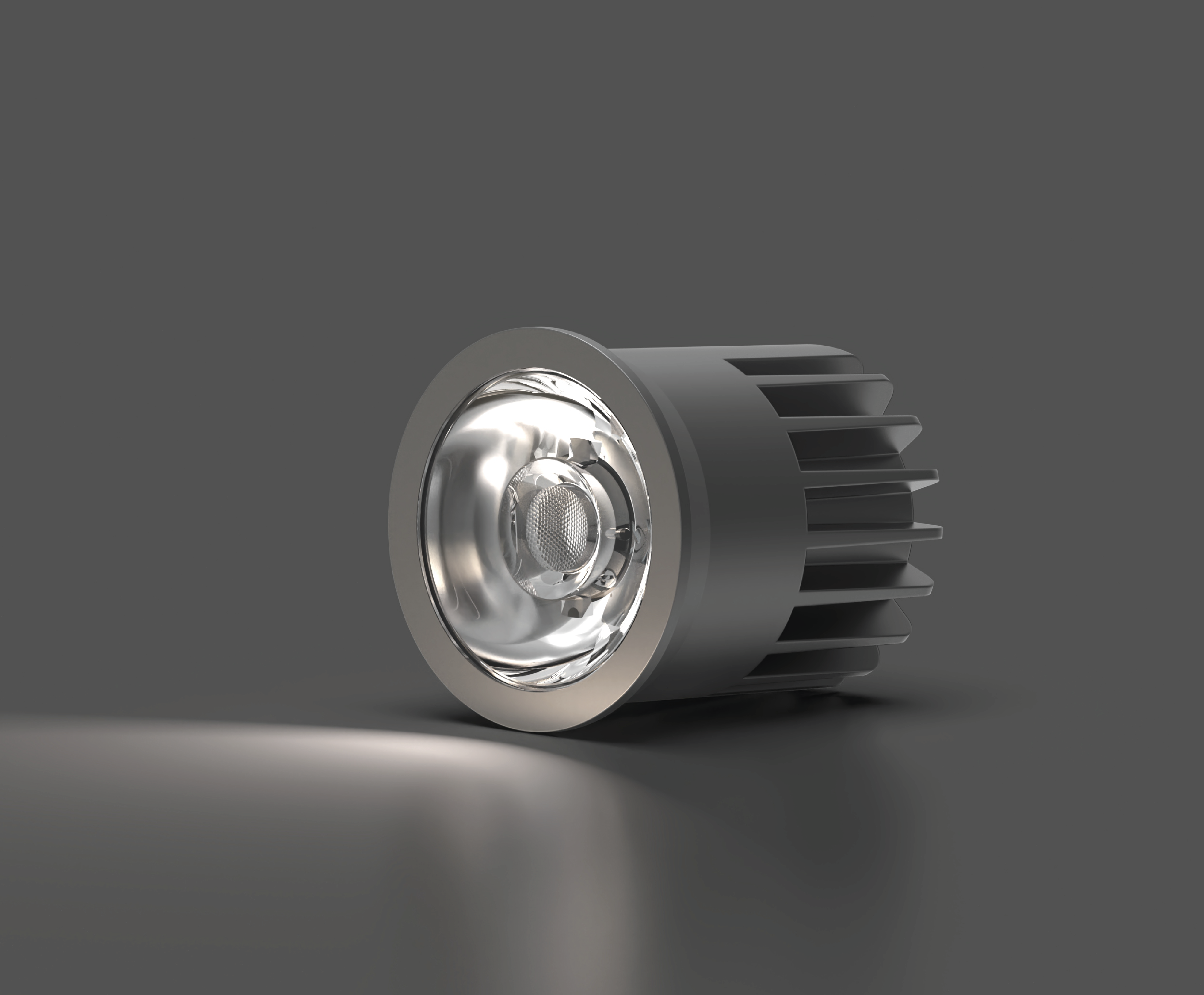

50mm Full Spectrum Natural Light Module

2700K 36deg NVMDX500 / 2700K 12deg NVMDX510 / 3000K 36deg NVMDX501 / 3000K 12deg NVMDX511

CCT Options: 2700K / 3000K

Light Output: 700-750 lumens

Power: 9W

Beam Options: 12deg / 36deg

Colour Rendering: 98CRI 99R9 & TM-30-15 Rf99 Rg101

Size: Ø50 x 53mm

Finish: Black

Driver: Inventronics Mains Dimmable

Icons: IP20 / 5 year warranty / Class II

Natural light has an intangible quality that we understand innately. Providing unmatched colour quality and clarity ofdetails, it’s something we seek whenever we need things to look true-to-life. Prismal Module 50 upgrades your downlight to match the full spectrum of natural light, achieving 98CRI and 99R9 using a Bridgelux Thrive COB LED. With reduced blue peaks, enhanced reds, and no cyan gap, Prismal Module 50 delivers the highest colour quality achievable with LED lighting.

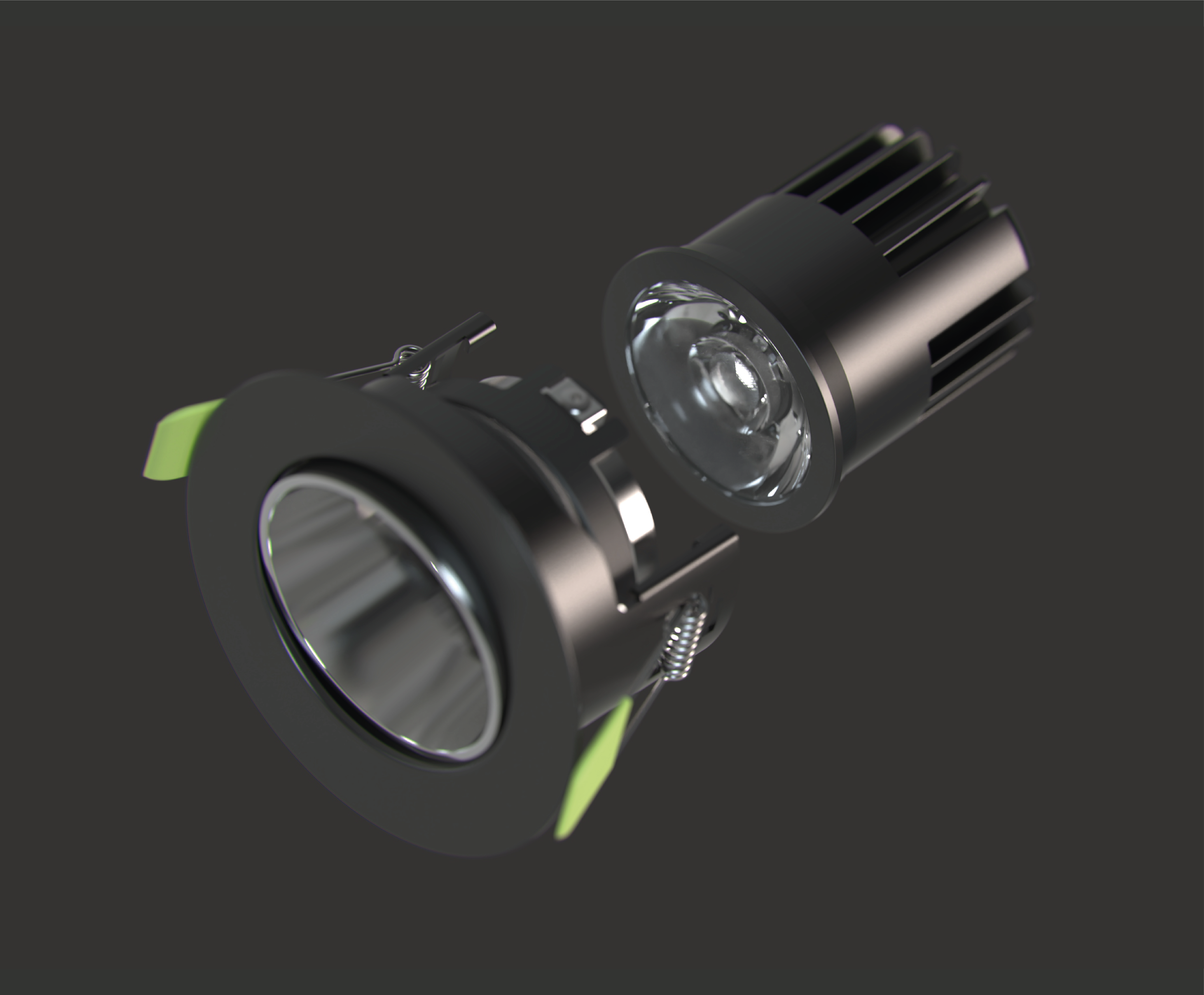

Available in 2700K and 3000K, and both a wide 36deg and a narrow 12deg beam angle, Prismal Module 50 is compatible with the following downlights:

Prismal Trimless 85, Prismal Trimless 85 Tilt, Prismal Maxi 105, Prismal Maxi 105 Tilt, Prismal Midi 92, Prismal Midi 92Tilt, Prismal 85, Prismal 85 Tilt, Prismal 72
